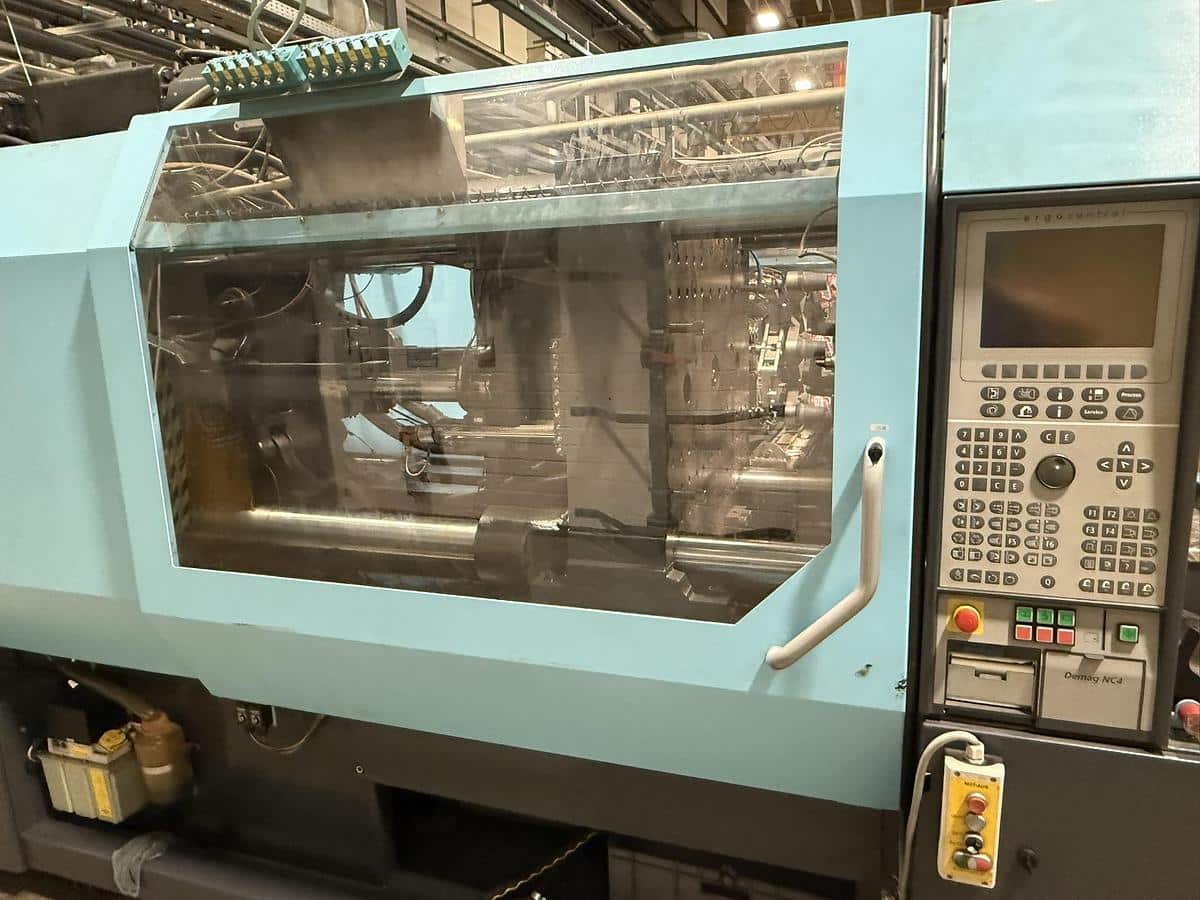

DEMAG EL-EXIS S 250/630-1450 – 250T

Demag EL-EXIS S 250/630-1450
Manufacturer: Demag
Model: EL-EXIS S 250/630-1450
Year of Manufacture: 2005

• Clamping force: 2500 kN
• Clamping holding force: 2750 kN
• Opening stroke max.: 675 mm
• Mold installation height min.: 330 mm
• Mold installation height max.: 710 mm (830 mm with extended configuration)
• Max. distance between mold clamping platens: 1385 mm (1505 mm with extended configuration)
• Mold clamping platens (H x V): 950 x 950 mm
• Clear tie-bar spacing (H x V): 630 x 630 mm
• Mold weight max.: 3300 kg
• Max. weight portion on moving mold clamping platen: 2200 kg
Hydraulic Ejector
• Ejector stroke: 200 mm
• Ejector force: 69 kN
• Ejector retraction force: 31 kN
