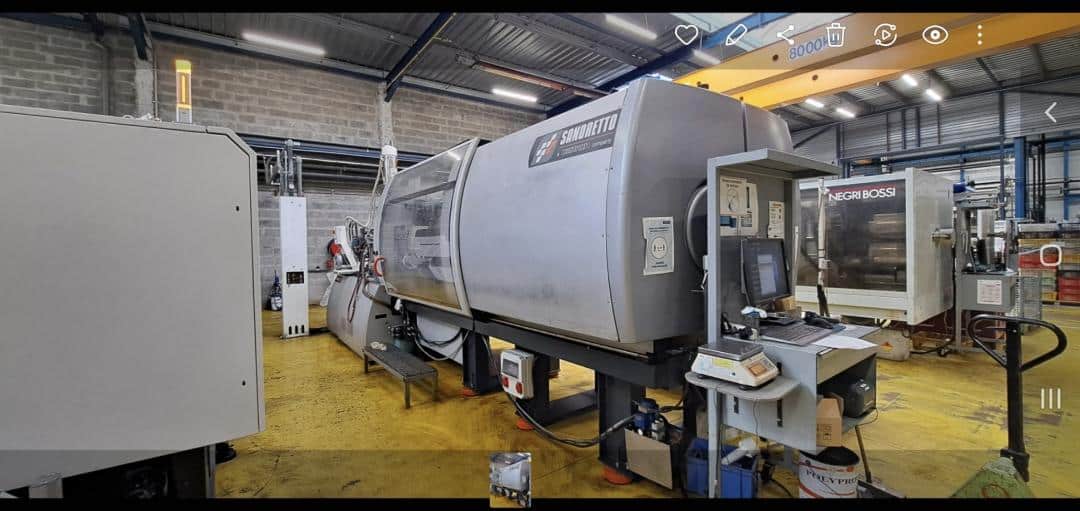

SANDRETTO Serie9 2650/4850 – 485T

SANDRETTO 485 T Series 9
Reference: 2650/4850
Year: 2003
In very good condition.
Clamping force: 485 T / 4850 kN
Distance between tie bar: 740 x 740 mm

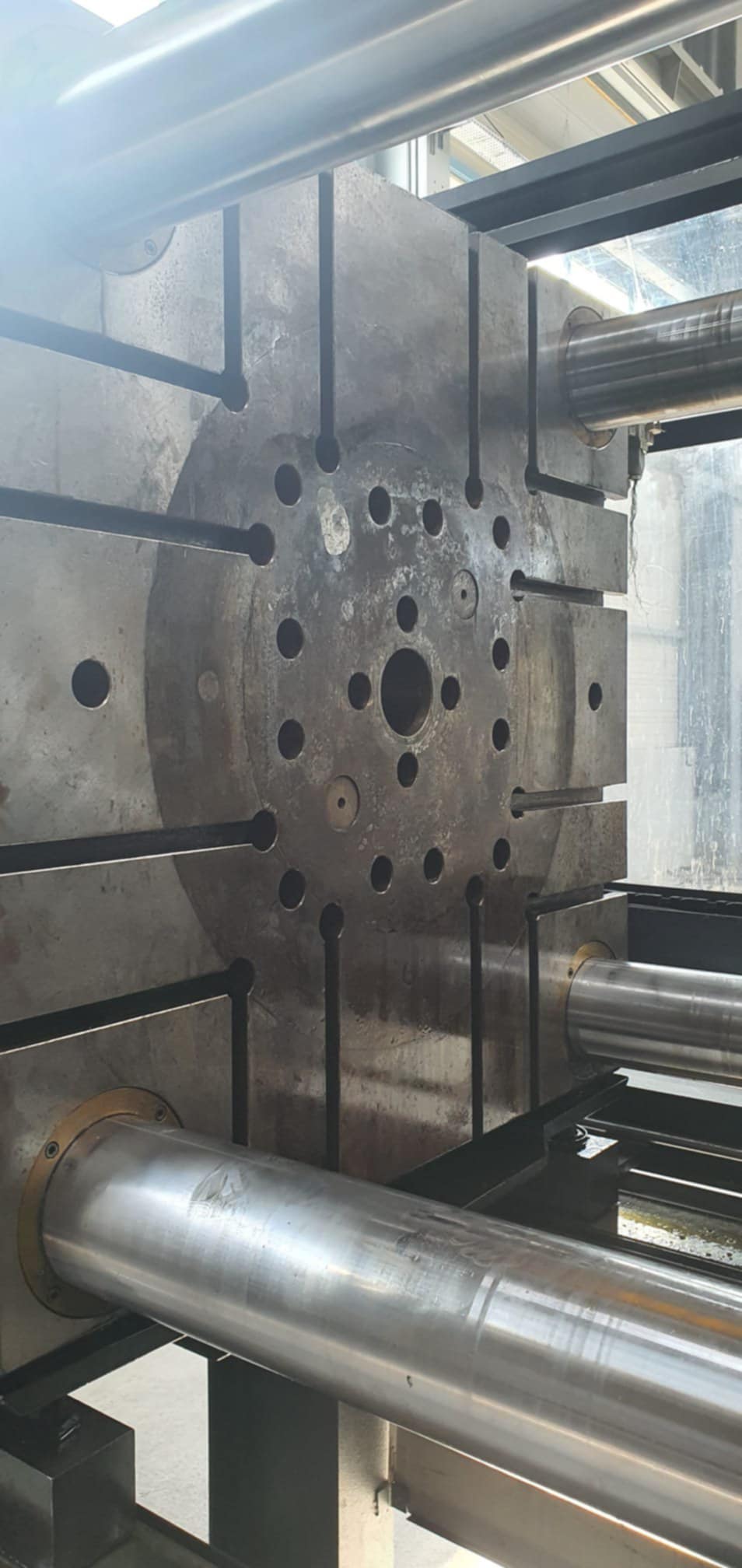

Table dimensions: 1120 x 1120 mm
Min/Max platen thickness: 250-850 mm
Opening stroke: 830 mm
Injection volume: 1768 cm³
Injection pressure: 1500 bar
Injection screw diameter: 80 mm
L/D ratio: 20
Options:
4 hydraulic cores
1 air blow gun

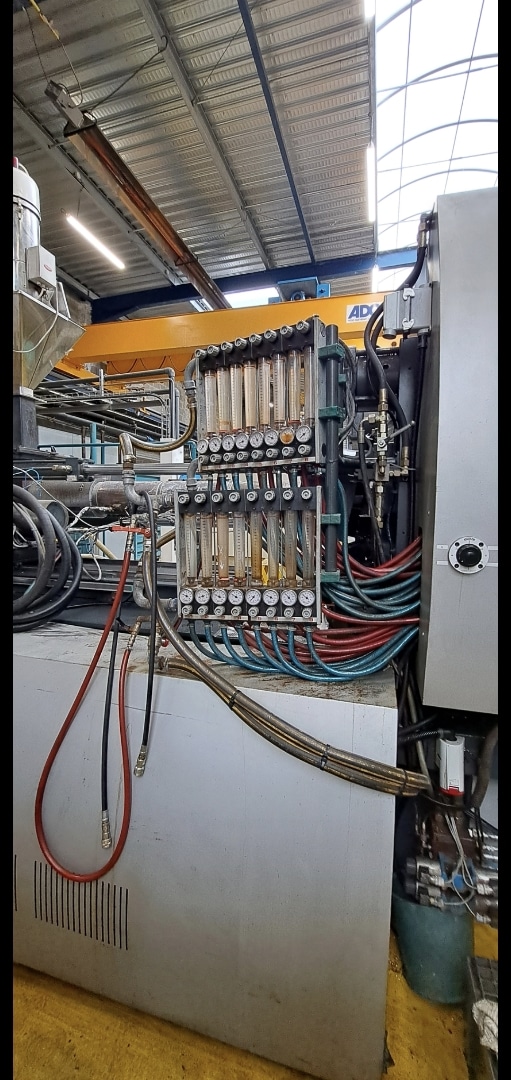

2 8-way water boxes
Weight: 21,500 kg
Dimensions: 8.71 x 2.65 x 2.14 m
